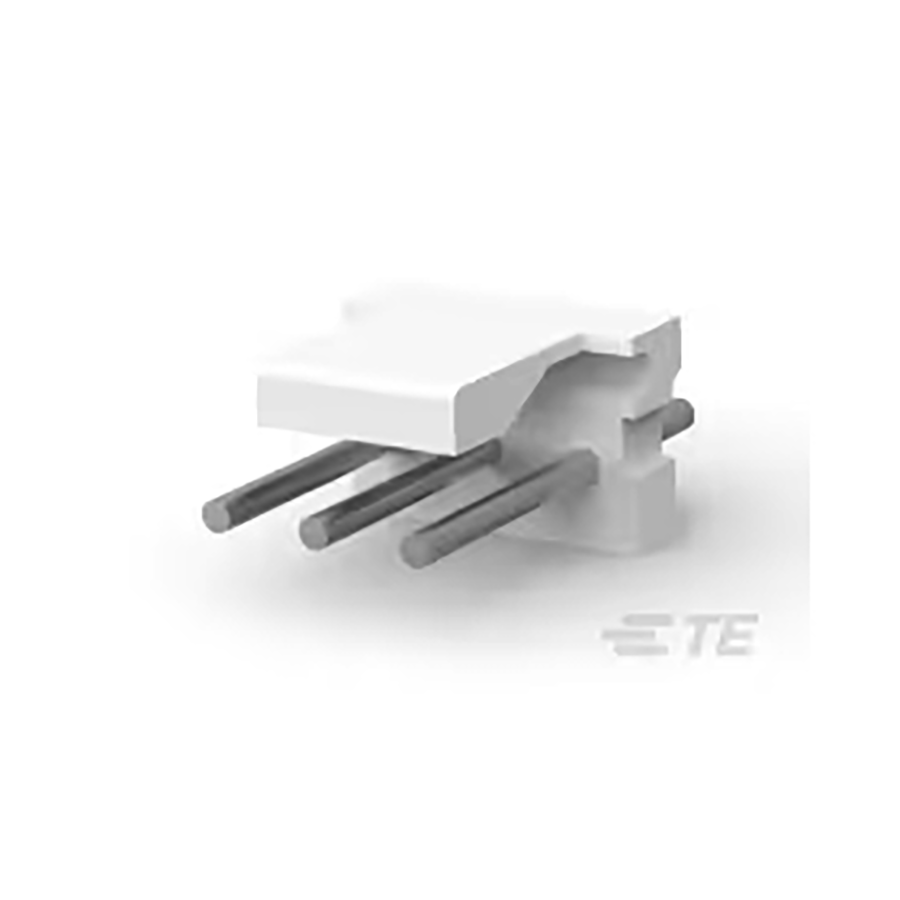

640388-3
Manufacturer:
TE Connectivity
Mfr.Part #:
640388-3
Datasheet:
Description:
IC and Component Sockets Through Hole Header Number of Positions:3 Number of Rows:1 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bag |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 3.96 mm |
| Current Rating | 7 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Lifecycle Status | Active |
| Color | White |
| Gender | Male |
| Number of Contacts | 3 |
| Mounting Style | Through Hole, Vertical |
| lead free status | Lead Free |
| operating temperature | -55.0 °C to 105 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| size length | 11.9 mm |
| voltage rating ac | 600 V |
| elv compliant | Compliant |
| Housing Color | White |
| pin pitch | 3.96 mm |
| shrouded | No |
| Contact Finish - Mating | Tin |
Stock: 1029
Distributors
pcbx
pcbxUnit Price$0.18730
Ext.Price$0.18730
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18730 | $0.18730 |
| 10 | $0.16716 | $1.67160 |
| 50 | $0.14918 | $7.45900 |
| 100 | $0.13017 | $13.01700 |
| 500 | $0.11359 | $56.79500 |
| 1000 | $0.10530 | $105.30000 |
| 3000 | $0.09761 | $292.83000 |
